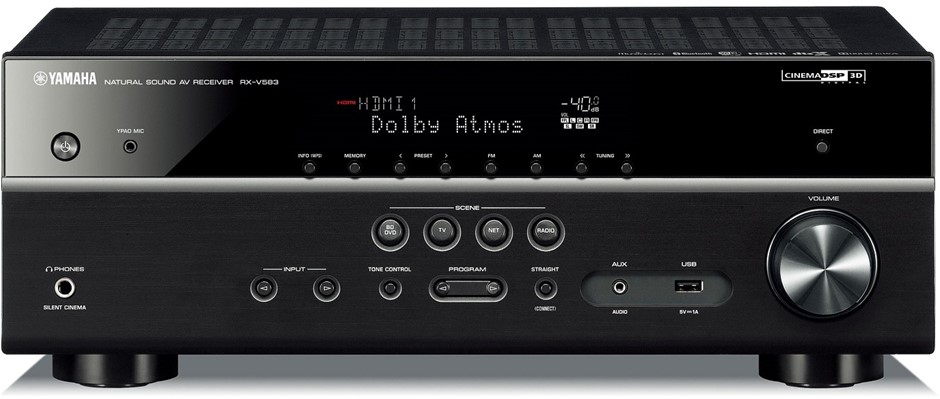

Yamaha RX-V583 AV Home Theatre 7.2 Dolby Atmos Receiver

Yamaha RX-V583 AV Home Theatre 7.2 Dolby Atmos Receiver (New)

This 7.2-channel 4K Ultra HD network AV receiver features Dolby Atmos® and DTS:X™ object based surround sound. Download the free MusicCast Controller app to access your music library and streaming music services easily. Add audio in up to 9 additional rooms with MusicCast wireless speakers or other MusicCast devices. Wi-Fi®, Bluetooth® and AirPlay® wireless connectivity, advanced speaker configurations and Zone B audio provide added system versatility. In addition, Dolby Vision™ and Hybrid Log-Gamma compatibility provide incredible contrast, smooth tone and rich, bright colors.

Features

• 7.2-channel surround sound with Dolby Atmos® and DTS:X™
• Zone B audio to fill another room with sound
• Add audio in up to 9 additional rooms with MusicCast
• Fully loaded with Wi-Fi®, Bluetooth®, AirPlay® and Spotify Connect
• 4-in, 1-out HDMI® with 4K Ultra HD pass-through and HDCP 2.2, HDR Video including Dolby
• Vision and Hybrid Log-Gamma, and BT.2020
• Compressed Music Enhancer and high-resolution audio support for sound clarity
• YPAO™ sound optimization for automatic speaker setup

Specifications

• Rated Output Power (1kHz, 1ch driven): 115 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven): 80 W (8 ohms, 0.09% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 145 W (6 ohms, 10% THD)
• Dynamic Power per Channel (8/6/4/2 ohms): 120 / 140 / 170 / 190 W
• CINEMA DSP: Yes (3D)
• DSP Programs: 17
• Dialog Level Adjustment: Yes
• Virtual Presence Speaker: Yes
• Virtual Surround Back Speaker: Yes
• Dialogue Lift: Yes
• SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
• Dolby Atmos: Yes
• Dolby TrueHD: Yes
• Dolby Digital Plus: Yes
• Dolby Surround: Yes
• DTS:X: Yes
• DTS-HD Master Audio: Yes
• Compressed Music Enhancer: Yes (incl. enhancer for Bluetooth®)
• YPAO sound optimization: Yes
• Adaptive DRC (Dynamic Range Control): Yes
• Initial Volume & Maximum Volume Setting: Yes
• Bi-amp capability: Yes
• Audio Delay: Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels: Yes (Burr-Brown)
• 4K Ultra HD Pass-through and upscaling: Yes (4K / 60p, 4:4:4)
• HDMI 3D passthrough: Yes
• HDMI Audio Return Channel: Yes
• HDMI upscaling: Yes (HDMI® to HDMI)
• Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes
• HDMI Input/Output: 4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
• HDMI CEC: Yes
• USB Input: USB Memory, Portable Audio Player
• Network Port: Yes
• Wi-Fi: Yes (with Wireless Direct)
• AirPlay: Yes
• Bluetooth: Yes (SBC / AAC)
• Front AV Input: USB / Mini Jack
• Digital Audio Input/Output: Optical: 1 / 0
• Digital Audio Input/Output: Coaxial: 2 / 0
• Analog Audio Input/Output: 4 (front 1) / 0
• Composite Video Input/Output: 1 / 0
• Preout: Subwoofer (2 x mono)
• Headphone Output: 1
• FM/AM Tuner: Yes
• On-screen display: Yes (color OSD)
• SCENE: SCENE (4 sets)
• App Control: Yes (iPhone / iPad / Android phone / tablet)
• Remote Control Unit: Yes
• Zone B Output: Yes
• Standby Power Consumption (IR only): =0.1W
• Auto Power Standby: Yes
• ECO mode: Yes
• Dimensions (W x H x D): 17-1/8” x 6-3/8” x 12-7/8” (with antenna: 17-1/8” x 8-7/8” x 12-7/8”)
• Weight: 17.9 lbs.
