Product Information:

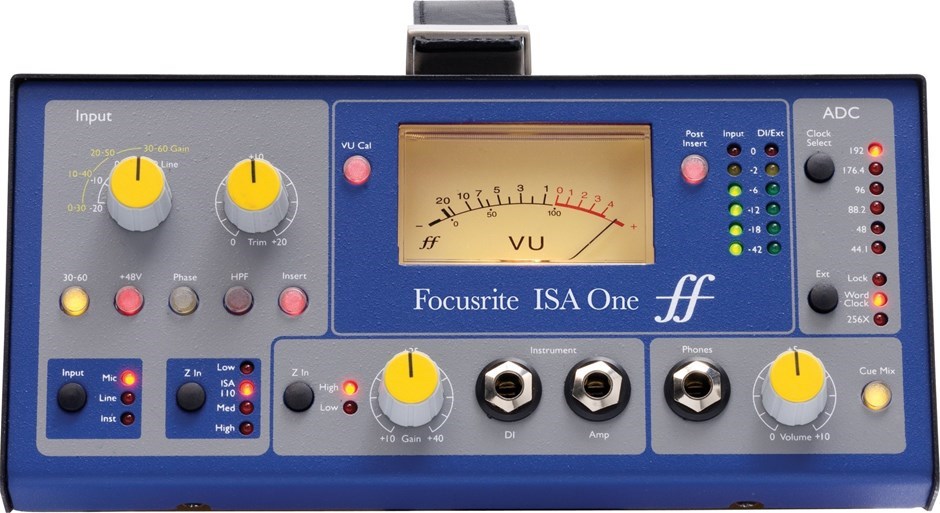

The ISA One microphone preamplifier delivers Focusrite's prestigious ISA transformer-based preamp in a rugged and portable chassis, at a groundbreaking price.

ISA One features the classic vintage microphone preamplifier topology from the original ISA110 module, which formed the cornerstone of each channel of Focusrite's legendary Forté console.

The preamp is complemented by a line input and an independent D.I. channel, complete with dedicated gain control, active or passive impedance switch, a TRS Jack output for routing to an amp and an independent XLR output on the rear. This flexible independent D.I. makes the ISA One ideal both for engineers wishing to blend a D.I.’d guitar signal with a mic’d guitar cabinet, and for demanding performers who require a single classic solution for both guitar and vocals.

A variable impedance circuit has been added, allowing the user to switch between four carefully selected input impedance settings. In addition to the original ISA110 impedance, three further impedance settings allow perfect matching, or creative mismatching of the preamp with any microphone. ISA One also features an insert point, should the need arise to place extra processing between the preamp or D.I. and the optional converter. Phantom power, phase reverse and a 75Hz, 18dB/octave high-pass filter are also available from the angled front fascia.

Independent input metering for both channels is provided in the form of a moving coil VU meter with variable calibration to suit analogue and digital recording media, alongside two six-LED peak meters; inputs can be metered either pre- or post-insert. The meter calibrations utilise all the same reference points as Avid's Pro Tools HD system, allowing effortless line-up.

ISA One’s headphone output features a dedicated volume control, which delivers an external stereo cue mix (a simple click track or a stereo mix feed from an interface or a live console) fed to the headphones via two TRS jack inputs on the rear of the unit.

An optional state-of-the-art stereo A-D converter is also available (the same card as used with the ISA430 MkII).

Specifications:

We always quote 'real world' performance figures (measured to the AES17 standard). Some companies choose to quote chipset performance, which is misleading, and here's why.

Mic Input Response

Gain range = 0dB to 60dB in 10dB steps + 20 dB of variable gain

Input Impedance, variable as follows:

(Switched Impedance setting Equivalent Input Impedance at 1kHz)

Low = 600 Ohms

ISA110 = 1400 Ohms

Med = 2400 Ohms

High = 6800 Ohms

EIN (equivalent input noise) = -126dB measured at 60dB of gain with 150 Ohm terminating impedance and 22Hz/22kHz band-pass filter

Noise at main output with gain at unity (0dB) = -97dBu measured with a 22Hz/22kHz band-pass filter

Signal to noise ratio relative to max headroom (9dBu) = 106dB

THD at medium gain (30dB) = 0.0009% measured with a 1kHz -20dBu input signal and with a 22Hz/22kHz band-pass filter

Frequency response at minimum gain (0dB) = -0.5dB down at 10Hz and -3dB down at 125kHz

Frequency response at maximum gain (60dB) = -3dB down at 16Hz and -3dB down 118kHz

CMRR=98dB (Channel 1, 1kHz, maximum gain with +24 dBu input)

Crosstalk Channel to Channel: with 10dB@1kHz input to chA, chB output =104dBrA. With 10dB@10kHz input to chA, chB output = 84dBrA

Line Input Response

Gain range = -20dB to +10dB in 10dB steps + 20 dB of variable gain

Input Impedance = 10k? from 10Hz to 200kHz

Noise at main output with gain at unity (0dB) = -96dBu measured with a 22Hz/22kHz band-pass filter

Signal to noise ratio relative to max headroom (24dBu)=120dB

Signal to noise ratio relative to 0dBFS (+22dBu) = 118dB

THD at unity gain (0dB) = 0.001% measured with a 0dBu input signal and with a 22Hz/22kHz band-pass filter

Frequency Response at unity gain (0dB) = -0.3dB down at 10Hz and -3dB down at 200kHz

Instrument Input Response

Gain range = 10dB to 40dB continuously variable

Input Impedance:

High = greater than1M

Low =greater than 300k

Noise at minimum gain (+10dB) = -92dBu measured with a 22Hz/22kHz band-pass filter

Noise at maximum gain (+40dB) = -62dBu measured with a 22Hz/22kHz band-pass filter

THD at minimum gain (+10dB) = 0.001% measured with a 10dBu input signal and with a 22Hz/22kHz band-pass filter

Frequency Response at 10dB gain with -10dB input = 10Hz-100kHz +/- 0.6dB

Frequency Response at 40dB gain with -40dB input = -2.5dB down at 10Hz and 0dB at 100kHz

High Pass Filter

Roll off = 18dB per octave 3 pole filter

Fixed Frequency 75Hz measured at the 3dB down point

Meters

Moving coil (MC) meter is factory calibrated to 0VU = +4dBu with 1kHz sinewave. With the VU Cal button pressed the meter can be adjusted on the rear panel to allow 0VU to equal +10dBu to +26dBu with the centre detent being equal to +22dBu.

Peak LED meters calibrated in the detent position for 0dBFS = +22dBu, calibration is adjustable on the rear panel to allow 0dBFS to equal +10dBu to +26dBu

Routing for MC and Peak1 meter is after the HPF, pre insert send or switched post insert return. Peak2 is always pre ADC channel 2, which can be fed by external input or Instrument input.

LED levels are as follows when peak calibration is set to center detent on the rear panel. (This is when using the internal ADC).

0 = +22dBu

-2 = +20dBu

-6 = +16dBu

-12 = +10dBu

-18 = +4dBu

-42 = -20dBu

FRONT AND REAR CONNECTIVITY

Analogue Channel Inputs:

Mic input: XLR x 1

Line input: XLR x 1 and TRS x1

Instrument input TRS Jack: XLR x 1

External ADC input: TRS Jack x 1

Return: TRS Jack x 1

Analogue Channel Outputs:

Send: TRS Jack x 1

Balanced line output: XLR x 1

DI output: XLR x 1

DI through: TS Jack x 1

Analogue Channel Additional I/O:

Cue mix left input: TRS Jack x 1

Cue mix right input: TRS Jack x 1

Headphones output: ¼” TRS Jack x 1

Weight

3.9kg

8.6Ibs

Dimensions

220mm (W) x 104mm (H) x 254 - 290mm (D - top to bottom)

8.66" (W) x 4.1" (H) x 10" - 11.4" (D - top to bottom)
